1 kV kabler

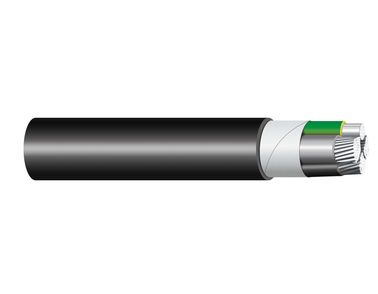

1-AYKY
The cable is designed for fixed installation, indoors and outdoors, in the ground and in concrete.
1/2
The cable is designed for fixed installation, indoors and outdoors, in the ground and in concrete.
Produktinformation
Yderligere produktdata, downloads og certifikater
Produktinformation
Downloads
Produktinformation
Materiale ledning: Aluminium
Materiale yderkappe: PVC
Kernetype: Multikerne
Testspænding: 4 kV
Maks. driftstemperatur: +70°C
Maks. kortslutningstemperatur: +140°C
Min. driftstemperatur: -35°C
Min. opbevaringstemperatur: -35°C
Min. Temperatur under lægning: -5°C
CPR brandklasse: Eca
Standard: PNE 347659-3
Downloads
- Datablade
- DOPs
- DOCs
